Drainage Pumps Grindex Minette

Overview Specifications Performance Curves
Overview

Overview

Product Features
  • Pump type Electrical submersible One-phase and Three-phase
  • Classification IP 68
  • Max submersion 20m
  • Cable 20m SUBCAB: 1-ph: 3G1.5mm2 3-ph: 4G1.5mm2
  • Discharge connection Hose, ISO-G or NPT
  • Limitations ph 5-8
  • Max liquid temp 40°C

Product code 8102.172;

The Minette pump is the next smallest model in the drainage range, but it shares all important features and benefits with the larger models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistence and dramatically reduces performance drop due to long time wear.

The Minette pump is available in two configurations;
Minette 1-phase and Minette 3-phase.

Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

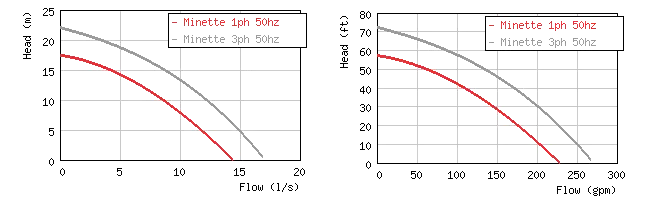

50Hz
Minette

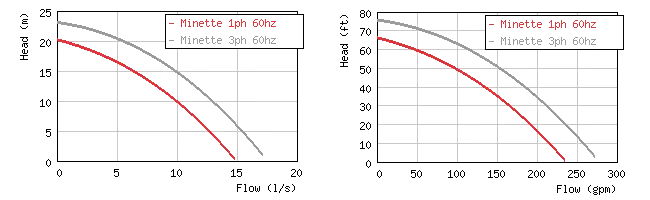

60Hz
Minette
