Stainless Steel Pumps Minette Inox

Overview Specifications Performance Curves Solutions
Overview

Overview

Product Features
  • Pump type: Electrical submersible
  • Classification: IP 68
  • Max submersion: 20m, Cable H07RN8-F, length 20m 4x2.5mm2, U=400-575 V
  • Discharge connection: Hose, BSP or NPT
  • Limitations: ph 2-10
  • Max liquid temp: 40°C

Product code 8115.390;

With its impressive allowed pH range, from 2 up to 10, it is hard to find an application that can't be handled by the Inox pumps. All materials in contact with the liquid are made out of AISI 316 stainless steel or better.)



Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

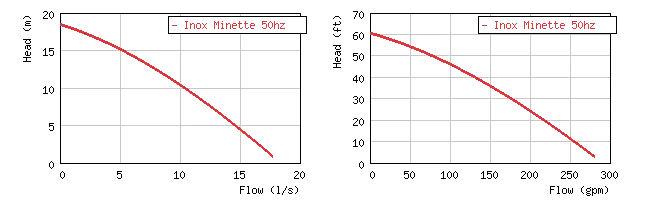

50Hz
Minette Inox

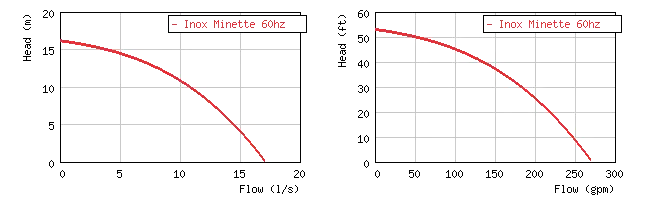

60Hz
Minette Inox
Solutions

Solutions

Recommended Solutions
