Stainless Steel Pumps Mega Inox

Overview Specifications Performance Curves Solutions
Overview

Overview

Product Features
  • Pump type: Electrical submersible
  • Classification: IP 68
  • Max submersion: 75m
  • Cable: 20m (requires external starter) DOL: 1 x 3x50+2G35/2+S(2x0,5) YD: 2 x 4G25+S(2x0,5) Other options available on request
  • Discharge connection: H: 4” EN 1092-2 tab. 9 / ASME B 16.5-1996;tab.8 / undrilled N: 6” EN 1092-2 tab. 9 / ASME B 16.5-1996;tab.8 / undrilled
  • Limitations: ph 2-10
  • Max liquid temp: 40°C

Product code 8124.390;

With its impressive allowed pH range, from 2 up to 10, it is hard to find an application that can't be handled by the Inox pumps. All materials in contact with the liquid are made out of AISI 316 stainless steel or better.



Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

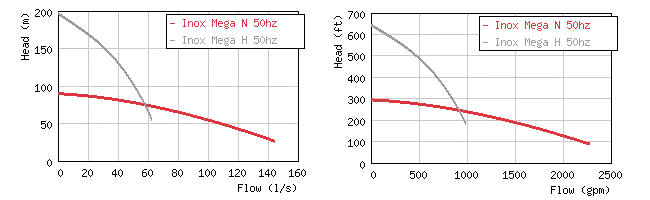

50Hz
Mega Inox

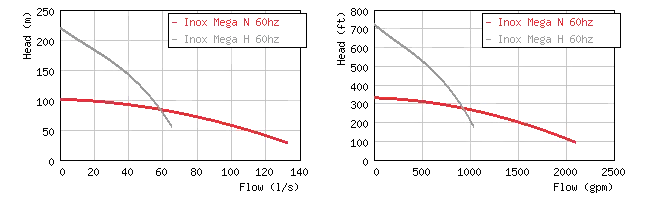

60Hz
Mega Inox
Solutions

Solutions

Recommended Solutions
