Stainless Steel Pumps Major Inox

Overview Specifications Performance Curves Solutions
Overview

Overview

Product Features
  • Pump type: Electrical submersible Three-phase
  • Classification: IP 68
  • Max submersion: 20m
  • Cable: 20 meters, SUBCAB: 3-phase: 4G2.5mm2
  • Discharge connection: N : 4" - hose, ISO-G or NPT H : 3" - hose, ISO-G or NPT
  • Limitations: ph 2-11
  • Max liquid temp: 40°C

Product code 8116.390;

With its impressive allowed pH range, from 2 up to 11, it is hard to find an application that can't be handled by the Inox pumps. The modular design drives service cost down and at the same time offers the flexibility to change from a Normal pressure pump (N), to a High pressure pump (H). All materials in contact with the liquid are made out of AISI 316 stainless steel or better.



Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

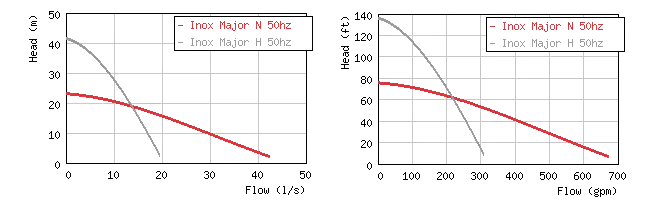

Major Inox - 50Hz
Major Inox

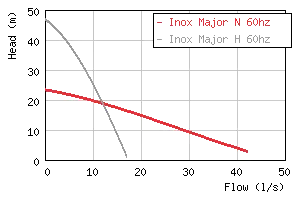

60Hz
Major Inox
Solutions

Solutions

Recommended Solutions
