Slurry Pumps Grindex Bravo 600

Overview Specifications Performance Curves
Overview

Overview

Product Features
  • Pump type: Electrical submersible Slurry pump
  • Classification: IP 68
  • Max submersion: 20m/66 ft
  • Cable: 20 m/66 ft SUBCAB [This pump requires an external starter box]
  • Discharge connection: Victaulic
  • Limitations: ph 5.5-14
  • Max liquid temp: 40°C/104°F (70°C/158°F on request)

Product code 8150.020;

Submersible slurry pumps for pumping fluids with abrasive solids.


The Bravo 600 is extremely wear-resistant thanks to the use of Hard-ironTM and the low shaft speed. It can be equipped with an agitator as an option to enhance the 'up-stirring' capabilities, but even without the agitator it is a superior quality pump for all kinds of slurry applications. Also available in Explosion Proof version.

Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

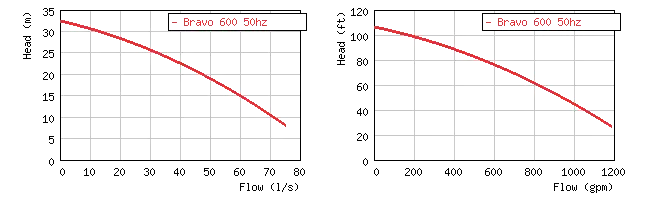

50Hz
Bravo 600

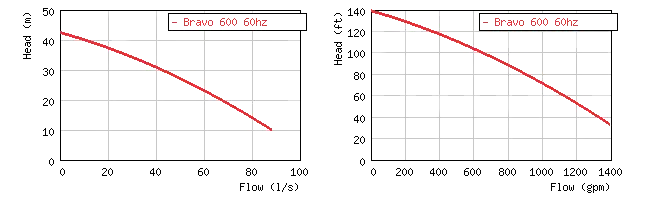

60Hz
Bravo 600
