Slurry Pumps Grindex Bravo 300

Overview Specifications Performance Curves
Overview

Overview

Product Features
  • Pump type: Electrical submersible three-phase Slurry pump
  • Classification: IP 68,
  • Max submersion: 20m/66 ft,
  • Cable: 20 m/66 ft SUBCAB [This pump requires an external starter box]
  • Discharge connection Hose, BSP or NPT
  • Limitations: ph 5.5-14
  • Max liquid temp: 40°C/104°F (70°C/158°F on request)

Product code 8147.020; Submersible slurry pumps for pumping fluids with abrasive solids.
All slurry applications don't require heavy duty pumps, and to meet this demand Grindex offer two smaller models, Bravo 200 and Bravo 300. They are intended for applications with lower demands on capability and wear resistance, and they are not equipped with agitator. For capacities below these, we recommend Grindex sludge pumps. Also available in Explosion Proof version.

Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

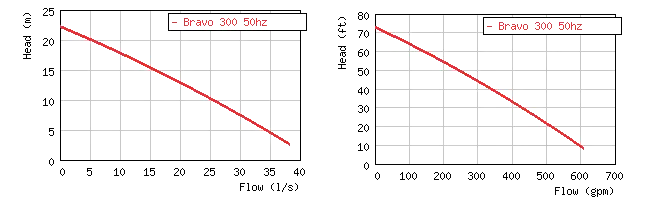

50Hz
Bravo 300

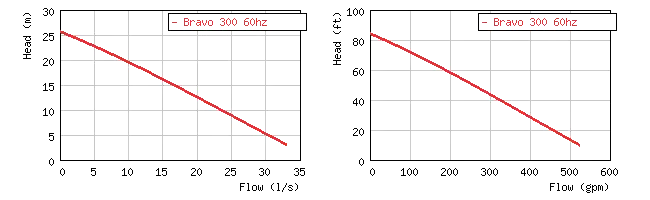

60Hz
Bravo 300
