Stainless Steel Pumps Grindex Sandy Inox

Overview Specifications Performance Curves
Overview

Overview

Product Features
  • Pump type: Electrical submersible Three-phase
  • Classification: IP 68
  • Max submersion: 20m
  • Cable: 20 meters, SUBCAB: 3-phase: 4G2.5mm2
  • Discharge connection: Hose, ISO-G or NPT
  • Limitations: ph 2-11
  • Max liquid temp: 40°C

Product code 8120.280;

The Inox version of the sludge pumps will handle all kinds of sludges reliably thanks to the vortex recessed-impeller design. With its impressive allowed pH range, from 2 up to 11, it is hard to find an application that can't be handled by the Inox pumps. The modular design drives service cost down. All materials in contact with the liquid are made out of AISI 316 stainless steel or better.



Specifications

Specifications

50 hz
60 hz
Performance Curves

Performance Curves

50 hz
60 hz

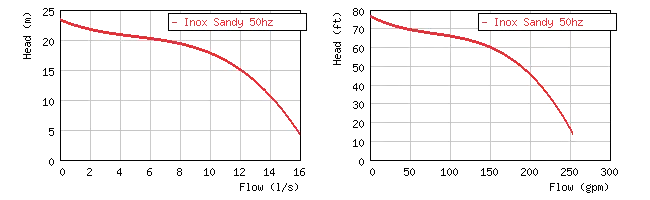

50Hz
Sandy Inox

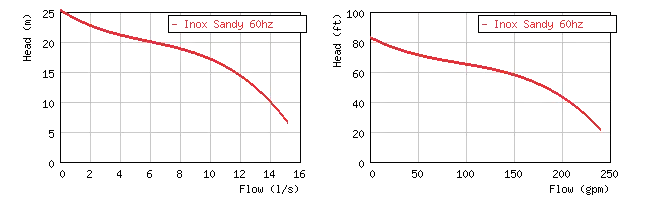

60Hz
Sandy Inox
